The innoFADER Revolutionary Non-Contact Fader

Scratch Pro Audio are proud to be the exclusive distributors in the UK and majority of Western Europe for the acclaimed innoFADER, the next generation of DJ crossfader technology.

The Audio Innovate innoFADER has been designed to completely change the way you feel about the crossfader in your mixer. Having worked closely with, and studied the habits and requirements of today’s DJs, the innoFADER offers unparalleled levels of quality and adjustability that you simply do not find with other faders.

The innoFADER introduces an all new capacitance technology, which means long life, ultra low maintenance and absolutely no bleeding - ever. Plus thanks to its non-contact technology, the innoFADER can also withstand even the most demanding DJ environments.

The innoFADER has been designed to plug and play with the widest range of commercially available mixers around, and includes all necessary adaptor boards, plates, screws and washers in the package. The innoFADER also comes with another first - full onboard cut-in and curve control, meaning you can actually add adjustability to mixers that may not already have it. In addition, the faders tension can also be adjusted to make the innoFADER suit your very own style.

InnoFADER Products currently distributed by Scratch Pro Audio

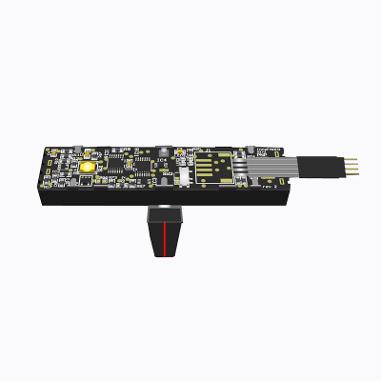

 Mini innoFADER Plus

The mini Innofader Plus is the latest model in the innoFADER range. This upgrade part will replace the mini Innofader PNP P. The cut point has 0.1mm precision combined with a lightning fast 1msec response time. You can now also hook it up to an innoJUSTER to ensure you get the hairline precision cut point exactly where you want it on the fly!

The installation process is now greatly simplified. Low profile connectors ensure that you do not have to worry about breaking any cables. The button is now easier to press. And the adjustments now can be done with simpler swipe movements.

The mini innoFADER Plus works as a replacement fader for even the tightest of mixers and controller where space is limited. Constructed using the same quality and technology of its bigger brothers the mini innoFADER Plus will breathe new life into your mixer or controller and give you years of use. Replace virtually any crossfader imaginable with a mini innoFADER Plus!

The mini innoFADER Plus is compatible with all the existing range of mixers and controllers along with now being plug and play with the Numark PT01S portable turntable.


Features:

  • Ultra fast 1msec response time
  • Smooth light weight fader
  • Precision 0.1mm step cut-in adjustment on both sides
  • 3 standard curves - soft, linear, and sharp
  • Output reverse
  • Up to 8mm total height adjustment
  • Unmatched product life
  • Non-contact variable capacitor technology
  • No bleed/crackling
  • Designed to plug and play with the widest range of mixers and controllers
  • 100% resistant to dust, smoke, temperature and moisture
  • No cleaning required
  • Highly polished premium grade stainless steel rails for extra smooth glide
  • Compatible with the innoJuster
  • Plug and Play with Numark PT01s

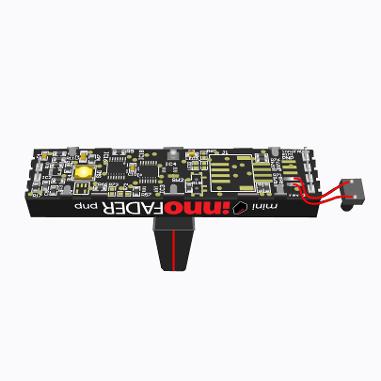

 Mini innoFADER Plus- S

Starting in Spring of 2014, you will be able to replace virtually any crossfader imaginable with a Mini Innofader PNP S. This will offer the features you demand on a long life fader:

1) Precision 0.15mm step cut-in adjustment on both sides
2) 3 standard curves - soft, linear, and sharp
3) Output reverse.

No longer are you "stuck" when your controller has a compact fader soldered to the PC board. Having the solder pin S version means you can essentially transform your average controller into a pro model. We even included an external switch so you can adjust the mini Innofader PNP S without having to remove it.

This model is known to work with:
Traktor S2 channel and crossfader
Traktor S4 channel faders
Vestax VCI-300, -380, -400 channel faders
ALL Numark Mixtrack / Mixdeck products

NOTE: This model requires some soldering. Prior to installation you need to make sure that the jumper settings on the PC board are soldered for the correct power supply as shown here. Please feel free to take your controller/mixer and mini Innofader PNP S to a repair center.


innoFADER PNP 2

The innoFADER has been designed to completely change the way you feel about the crossfader. With four models now available, the PNP - Plug and play, is the latest edition to the range. Developed to offer a high quality alternative to replacement crossfaders with added customisation. As with all innoFADERs, it has been constructed to the highest standard and is compatible with a wide range of mixer models.

For more information, please click here: innoFADER PNP-2



innoFADER Pro 2

The innoFADER Pro2 is the ultimate replacement audio fader. It gives you an ultra precise ± 0.05mm cut-in accuracy for even tighter control of your scratches. Separate left and right cut controls make it easy to adjust without the need to recalibrate. And for the perfectionist in you, it even has super precise presets which allow you to do things like shift the cut point by a mere 0.04mm, less than even the thickness of your hair.

The Pro2 now fits more mixers than ever, with easier installation all without modification. Please view innoFADERS compatibility chart for full list. The adapter boards are already insulated and marked clearly to show you the specific one you need for your mixer.

For more information, please click here: innoFADER Pro2

innoFADER 909

The innoFADER 909 again includes all the same features as the entire range of innoFADERs and has been constructed to the highest standard, however this model has been specifically designed to exclusively fit the Pioneer 909/707 mixer models.

For more information, please click here: innoFADER 909

Mini innoFADER DUO

The mini innoFADER Duo makes upgrading more affordable than ever. With two yes two mini innoFADERS in a single package! You can swap your Z2 channel faders or you can use one and still have a spare mini innoFADER to keep you up and running.

Works as a replacement for the following mixers and controllers:

DJ Tech - TR-1S crossfader

Akai AMX crossfader

Hercules RMX2 crossfader

All DJ-Tech DIF crossfaders

All Epsilion inno-MIX crossfaders

TRX Channel faders and crossfader

            Native Instruments TRAKTOR KONTROL Z2 Channel Faders and crossfader

        All reloop RMX and Terminal Mix crossfaders

All American Audio MXR and VMS crossfaders


For all other information regarding the innoFADER, including fitting instructions, please visit the main website: innoFADER
